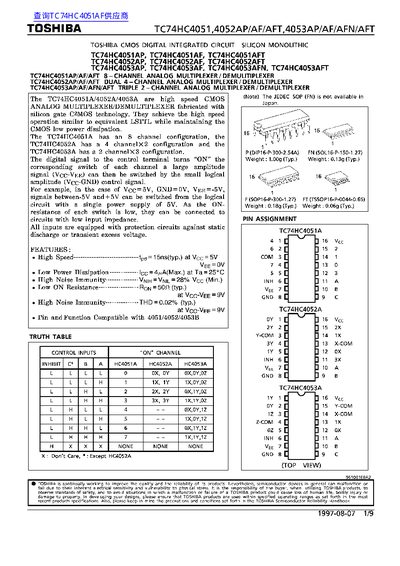

This document provides technical specifications for the TC74HC4051A, TC74HC4052A, and TC74HC4053A series of high-speed CMOS analog multiplexers/demultiplexers. These devices are fabricated with silicon gate C2MOS technology to achieve high-speed operation similar to LSTTL while maintaining low power dissipation.
| Supply Voltage Range (Vcc) | -0.5~7 V |
|---|---|
| Control input Voltage (Vin) | -6.5~+6.5 V |
| Operating Temperature | -40°C~85°C |
| ON Resistance (Ron) | 500 Ω (typ.) at Voc-VEE = 9V |
| Propagation Delay Time (tpd) | 15ns (typ.) at Voc = 5V |
The typical propagation delay time (tpd) is 15ns when Vcc is 5V and VEE is 0V.
Yes, they are pin and function compatible with the 4051/4052/4053B series.
