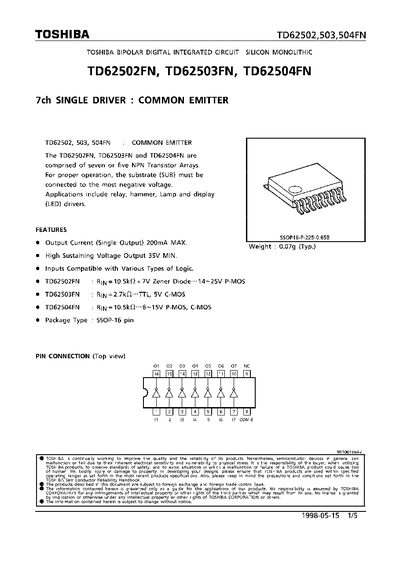

This document is a technical datasheet for the Toshiba TD62502FN, TD62503FN, and TD62504FN series of Bipolar Digital Integrated Circuits. These devices are comprised of NPN transistor arrays designed as single drivers with a common emitter configuration.
| Output Current (Single Output) | 200mA MAX. |
|---|---|
| High Sustaining Voltage Output | 35V MIN. |
| Package Type | SSOP-16 pin |
| Collector-Emitter Voltage (Max) | 35 V |
| Collector Current | 200 mA /ch |
| Operating Temperature Range | -40~85 °C |
Applications include relay, hammer, Lamp and display (LED) drivers.
The TD62504FN is comprised of five NPN Transistor Arrays.
