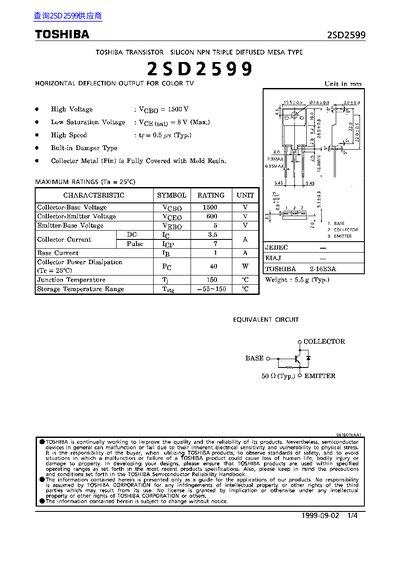

This document is a technical datasheet for the Toshiba 2SD2599, an NPN silicon triple diffused mesa type transistor designed specifically as a horizontal deflection output device for color television units. The component features a built-in damper diode and a collector metal fully covered with mold resin.
| Collector-Base Voltage (VcBO) | 1500 V |
|---|---|
| Collector-Emitter Voltage (VCEO) | 600 V |
| Collector Current Pulse (Icp) | 7 A |
| Base Current (Ip) | 1 A |
| Collector Power Dissipation (Pc) | 40 W |
| Transition Frequency (ft) | 3 MHz |
The maximum collector current pulse rating is 7 A.
The maximum collector power dissipation is 40 W.
The maximum collector-emitter saturation voltage is 8 V.
