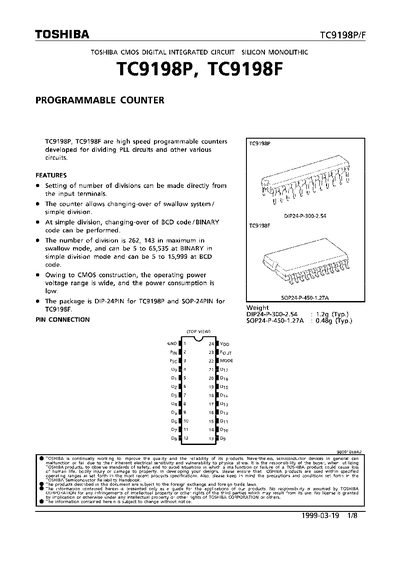

This document describes the Toshiba TC9198P and TC9198F, which are high-speed programmable CMOS digital integrated circuit silicon monolithic counters. These devices are designed for dividing PLL circuits and other various applications. The chips feature a setting of number of divisions directly from input terminals and allow changing-over between swallow system and simple division modes.
| Operating Supply Voltage Range | -0.3~7.0 V (Max) |
|---|---|
| Maximum Power Dissipation | 300 mW |
| Operating Temperature Range | -40~85 °C |
| Maximum Division (Swallow Mode) | 262,143 |
| Maximum Division (Binary Simple Mode) | 65,535 |
| Maximum Division (BCD Code Mode) | 15,999 |
The maximum number of division is 262,143 in swallow mode.
TC9198P uses a DIP-24PIN package and TC9198F uses an SOP-24PIN package.
