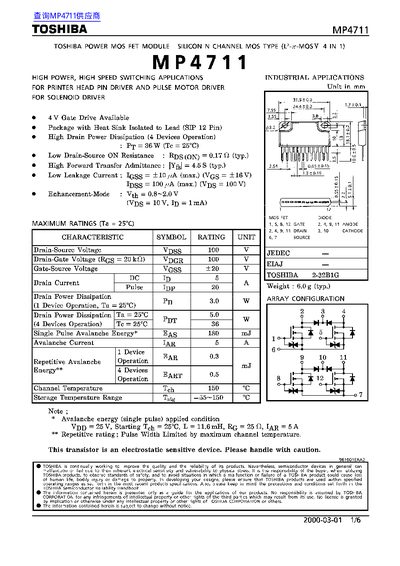

The Toshiba MP4711 is a Power MOS FET module designed for high-power, high-speed switching applications. It utilizes Toshiba's L2-z-MOS technology and consists of four silicon N-channel MOS devices in a single package with a heat sink. The module is isolated to the lead (SIP 12 Pin) and is suitable for industrial applications such as printer head pin drivers, pulse motor drivers, and solenoid drivers.
| Drain-Source Voltage | 100 V |
|---|---|
| Drain Current Pulse | 20 A |
| Drain Power Dissipation (4 Devices) | 36 W |
| Drain-Source ON Resistance | 0.17 Ω (typ.) |
| Channel Temperature | 150 °C |
| Package Type | SIP 12 Pin |
It is designed for high-power, high-speed switching applications such as printer head pin drivers, pulse motor drivers, and solenoid drivers.
The maximum channel temperature is 150 °C.
