This document is the datasheet for Panasonic PUB4118(PU4118), including pin definition, package form, maximum ratings, characteristic curves, application circuits, etc.

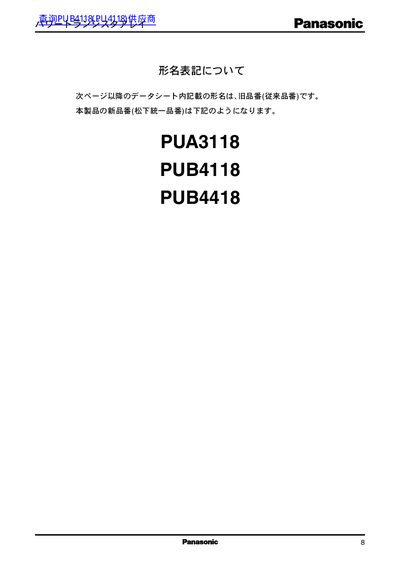

This document is a datasheet for the Panasonic PUA3118, PUB4118, and PUB4418 series of NPN transistors. It provides new unified part numbers corresponding to legacy models and outlines their intended use for power amplification and switching applications. The document specifies that these devices are designed for standard applications in general electronic equipment such as office, communication, and measurement instruments. This manual is written in Japanese.
The new unified part numbers are PUA3118, PUB4118, and PUB4418.
The new unified Panasonic part numbers are PUA3118, PUB4118, and PUB4418.
