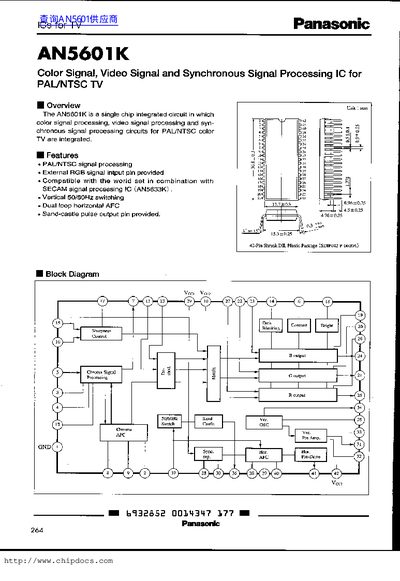

The Panasonic ANS5601K is a single-chip integrated circuit designed for color signal, video signal, and synchronous signal processing in PAL/NTSC color TVs. It integrates circuits for external RGB signal input and is compatible with SECAM signal processing when combined with the AN5633K. The chip features vertical 50/60Hz switching, dual loop horizontal AFC, and a sand-castle pulse output pin.
| Package type | 42-Pin Shrunk DIL Plastic Package |
|---|
The maximum power dissipation rating is 1200 mW.
It switches based on a voltage level of 3.7V applied to pin 33.
The burst gate width measures between 28 and 33 microseconds.
