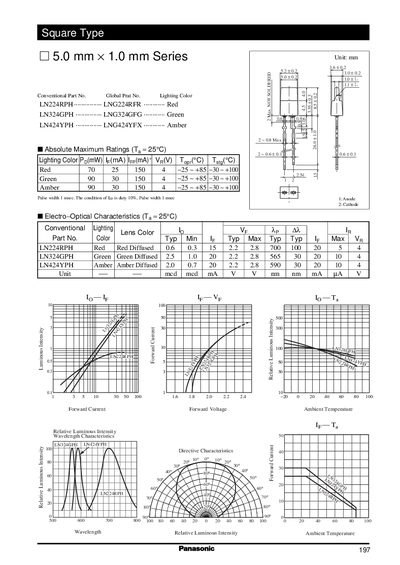

This document describes the technical characteristics of a square LED, including the electrical parameters, optical characteristics, and absolute maximum ratings of red, green, and amber LEDs.
This document provides technical specifications for the Panasonic Square Type 5.0mm x 1.0mm Series LEDs. It lists conventional part numbers for Red (LN224RPH), Green (LN324GPH), and Amber (LN424YPH) variants, along with their lighting colors and global part numbers.
The datasheet details absolute maximum ratings and electro-optical characteristics for each color at 25°C. It includes data for forward current, forward voltage, relative luminous intensity, wavelength, and directive characteristics. Safety precautions regarding Gallium Arsenide (GaAs) material and export regulations are also noted.
| Product Type | Square Type 5.0 mm x 1.0 mm Series |
|---|---|
| Part Number (Red) | LN224RPH |
| Part Number (Green) | LN324GPH |
| Part Number (Amber) | LN424YPH |
| Maximum Forward Current (Red) | 70 mA |
| Maximum Forward Current (Green) | 90 mA |
| Maximum Forward Current (Amber) | 90 mA |
| Operating Temperature Range | -25 ~+85°C |
| Storage Temperature Range | -30 ~ +100°C |
The product uses Gallium arsenide material (GaAs).
They are intended for standard applications or general electronic equipment such as office equipment, communications equipment, measuring instruments, and household appliances.
Yes, GaAs-containing products should not be mixed with ordinary industrial waste or household refuse.
