This document is about the absolute maximum ratings and electro-optical characteristics of LN233RPH, LN333GPH, LN433YPH, LN833WPH. It includes the product's model, color, package, working voltage, working current, luminous intensity, etc.

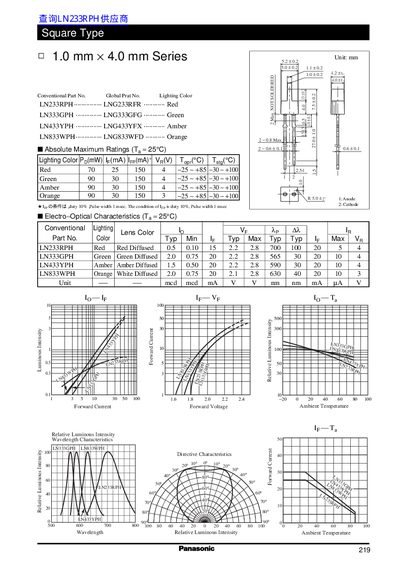

This document provides technical specifications for the Panasonic ZSiMLN233RPH Square Type LED series, which includes a 1.0mm x 4.0 mm package size. The datasheet lists conventional part numbers and global part numbers for various lighting colors, including Red, Green, Amber, and Orange.
The document details absolute maximum ratings such as forward current, reverse voltage, and operating temperature ranges. It also presents electro-optical characteristics, including typical forward voltage, luminous intensity, and peak wavelength for each color variant.
| Package Size | 1.0mm x 4.0 mm |
|---|---|
| Red LED Forward Current | 25 mA |
| Red LED Operating Temperature | -25 ~+85°C |
| Green LED Peak Wavelength | 565 nm |
| Amber LED Peak Wavelength | 590 nm |
| Orange LED Peak Wavelength | 630 nm |
The operating temperature range is -25 to +85 degrees Celsius.
The typical forward voltage is 2.2 Volts.
The peak wavelength for the Amber LED is 590 nanometers.
