This document describes the features and characteristics of the Schottky Barrier Diodes (SBD) MA3J744, which are suitable for super-high speed switching circuits and small current rectification.

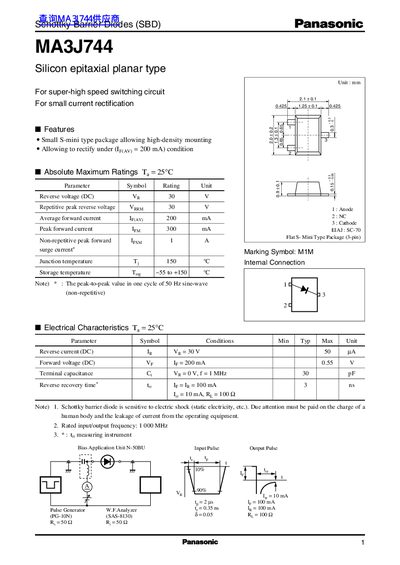

This document is a datasheet for the Panasonic MA3J744, a silicon epitaxial planar type Schottky Barrier Diode (SBD) designed for super-high speed switching circuits and small current rectification. It features a small S-mini type package (SC-70) allowing for high-density mounting.
The datasheet provides absolute maximum ratings, including a reverse voltage of 30V and an average forward current of 200mA. It also lists electrical characteristics such as forward voltage, terminal capacitance, and reverse recovery time, along with typical application circuits involving pulse generators and waveform analyzers.
Yes, it features a small S-mini type package that allows for high-density mounting.
The rated input/output frequency is 1000 MHz.
