This document describes the features and characteristics of the transistors with built-in resistors UNR4121/4122/4123/4124/412X/412Y, which are suitable for digital circuits. Costs can be reduced through downsizing of the equipment and reduction of the number of parts. The new S type package allows supply with radial taping.

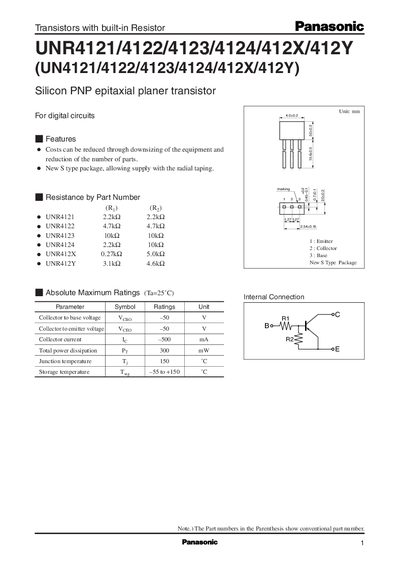

This document is a datasheet for the Panasonic UNR4121/4122/4123/4124/412X/412Y series of silicon PNP epitaxial planar transistors with built-in resistors. The series is designed for digital circuits and features a new S type package allowing supply with radial taping. The datasheet lists specific resistance values for each model, such as 2.2kΩ for the UNR4121 and 10kΩ for the UNR4123.
| Transistor Type | Silicon PNP epitaxial planar transistor |
|---|---|
| Resistance (UNR4121) | 2.2kΩ |
| Resistance (UNR4123) | 10kΩ |
| Resistance (UNR412X) | 0.27kΩ |
| Resistance (UNR412Y) | 3.1kΩ |
They use a new S type package that allows supply with radial taping.
Yes, they are intended for standard applications or general electronic equipment like office equipment and household appliances.
