XN04390 is a composite transistor with two elements incorporated into one package. It consists of a silicon NPN epitaxial planer transistor (Tr1) and a silicon PNP epitaxial planer transistor (Tr2). It is designed for digital circuit and switching.

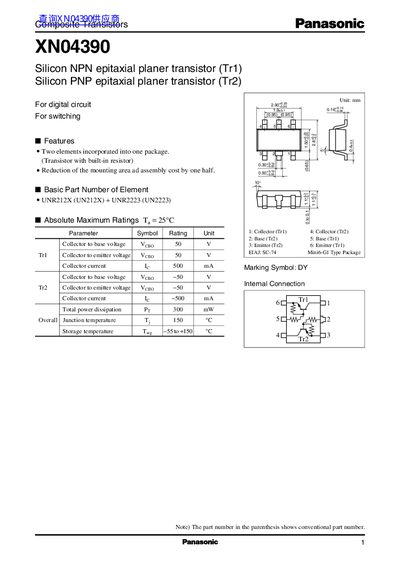

The document describes the Panasonic XN04390, a silicon NPN/PNP epitaxial planar transistor integrated into a single SC-74 Mini6-G1 package. This design reduces mounting area and assembly costs by incorporating two elements with a built-in resistor.
Key specifications include a collector current of 500 mA, a total power dissipation of 300 mW, and an operating junction temperature up to 150 °C. The datasheet details electrical characteristics for both the NPN (Tr1) and PNP (Tr2) elements at room temperature.
| Package Type | SC-74 Mini6-G1 Type Package |
|---|---|
| Collector Current (Tr1) | 500 mA |
| Total Power Dissipation | 300 mW |
| Junction Temperature | 150 °C |
The maximum rated junction temperature for the XN04390 is 150 °C.
The XN04390 is a composite transistor that incorporates two elements into one package for use in digital circuits and switching applications.
The total power dissipation rating for the XN04390 is 300 mW.
