This document describes the features and characteristics of Transmissive Photosensors (Photo lnterrupters), including highly precise position detection and gap width.

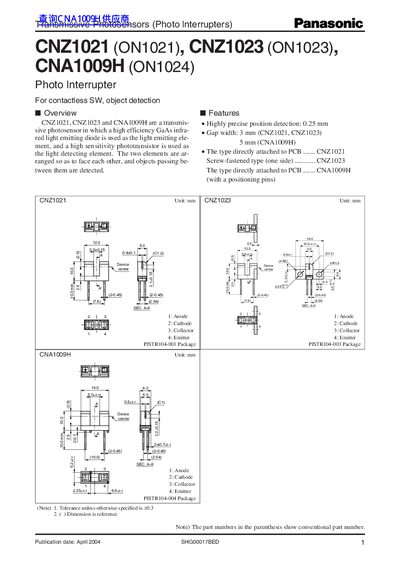

This document provides technical specifications and characteristics for the Panasonic CNZ1021, CNZ1023, and CNA1009H photo interrupters. These devices utilize a high-efficiency Gallium Arsenide (GaAs) infrared light-emitting diode and a high-sensitivity phototransistor to detect objects passing between them for contactless switching and object detection applications.
| Gap width | 3 mm (CNZ1021, CNZ1023), 5 mm (CNA1009H) |
|---|---|
| Forward current | 50 mA |
| Power dissipation (Input) | 75 mW |
| Collector current | 20 mA |
| Operating ambient temperature | -25 to +85 °C |
The gap width is 3 mm for both the CNZ1021 and CNZ1023 models.
The gap width for the CNA1009H model is 5 mm.
The maximum forward current rating is 50 mA.
