AN17813A is an audio power amplifier IC with dual 7.5W + single 14W power output, built-in muting circuit, and protection circuit.

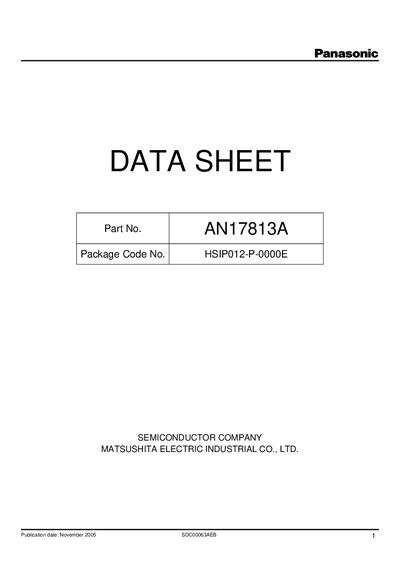

This document is a datasheet for the Panasonic AN17813A, a semiconductor audio power amplifier IC. The device is designed to provide dual 7.5 W and single 14 W audio power output and incorporates built-in muting and protection circuits. It is housed in a SIL-12 pin plastic package with a power-type fin.
| Power Output (Dual) | 7.5 W |
|---|---|
| Power Output (Single) | 14 W |
| Package Type | SIL-12 pin plastic package |
| Supply Voltage Range | 10.0 to 26.0 V |
| Power Dissipation | 37.5 W |
| Operating Ambient Temperature | -25 to +75 °C |
The AN17813A is a dual 7.5 W + single 14 W audio power amplifier that includes a built-in muting circuit and protection circuit.
The operating supply voltage range is 10.0 to 26.0 V.
