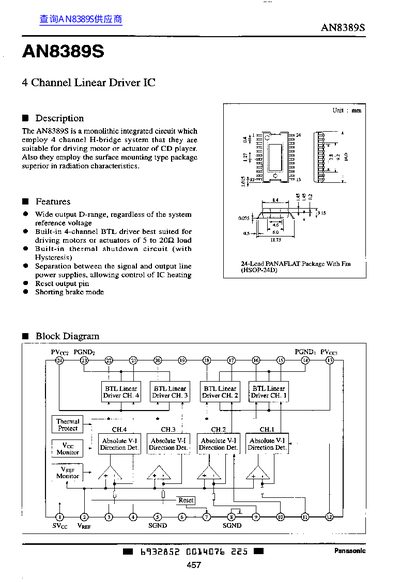

The AN8389S is a monolithic integrated circuit that employs a 4-channel H-bridge system, making it suitable for driving motors or actuators found in CD players. It utilizes a surface mounting type package with superior radiation characteristics. Key features include a wide output dynamic range, a built-in 4-channel BTL driver optimized for loads of 5 to 20 ohms, and a built-in thermal shutdown circuit with hysteresis.
| Storage Temperature | +55 ~ +150 °C |
|---|---|
| Gain (+) | 15.5 ~ 21.5 dB |
| Limit Voltage (-) | -5.3 ~ -4.95 V |
The built-in 4-channel BTL driver is best suited for driving motors or actuators with a load of 5 to 20 ohms.
Yes, the IC includes a built-in thermal shutdown circuit with hysteresis.
