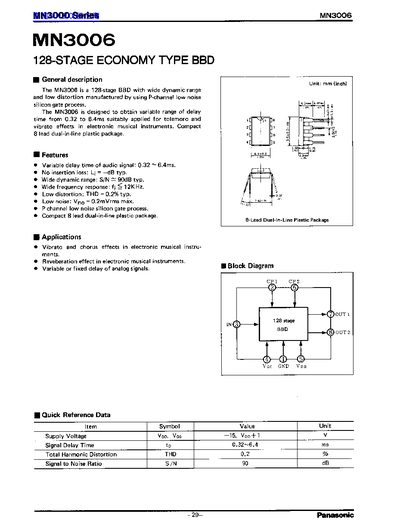

The Panasonic MN3006 is a 128-stage Bucket-Brigade Device (BBD) manufactured using a P-channel low noise silicon gate process. It is designed to provide a variable delay time ranging from 0.32 to 6.4ms, suitable for vibrato and chorus effects in electronic musical instruments. The device features a wide dynamic range with a signal-to-noise ratio of 90dB and low distortion of 0.2% typical.
| Signal Delay Time | 0.32 ~ 6.4 ms |
|---|---|
| Signal to Noise Ratio | 90 dB typ. |
| Total Harmonic Distortion | 0.2 % typ. |
| Wide Frequency Response | 12 kHz |
| Low Noise | 0.2mVrms max. |
| Supply Voltage | -15V to +15V |
| Package Type | 8 lead dual-in-line plastic package |
The typical signal delay time ranges from 0.32 to 6.4ms.
The typical Total Harmonic Distortion is 0.2%.
