SPB-37120W-1590G is a single-fiber SFP transceiver produced by Optoway. It supports the IEEE 802.3ah 100BASE-BX standard and has a 1590nm DFB LD transmitter and a 1510nm receiver. The distance can reach 120km and the working temperature is 0 to 70oC. It supports RoHS standards.

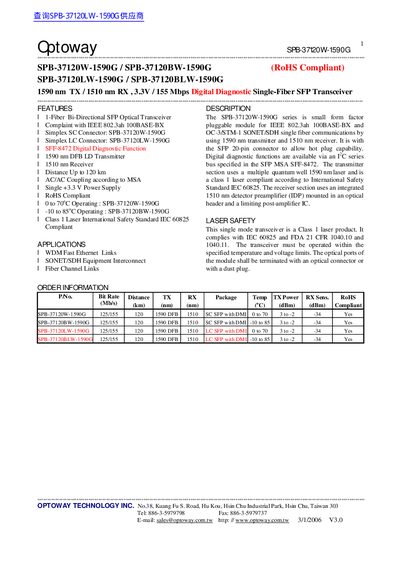

This document is a technical datasheet for the Optoway SPB-37120W-1590G series, which are small form-factor pluggable (SFP) optical transceivers. The module supports IEEE 802.3ah 10OBASE-BX and OC-3/STM-1 SONET/SDH single-fiber communications using a 1590 nm transmitter and a 1510 nm receiver, achieving distances up to 120 km.
| Data Rate | 125/155 Mb/s |
|---|---|
| Distance | Up to 120 km |
| Operating Temperature (Standard) | 0 to 70°C |
| Power Supply Voltage | +3.3 V |
| Connector Type (Standard) | Simplex SC Connector |
The module uses a 1590 nm DFB LD Transmitter.
Yes, it includes SFF-8472 Digital Diagnostic Function.
