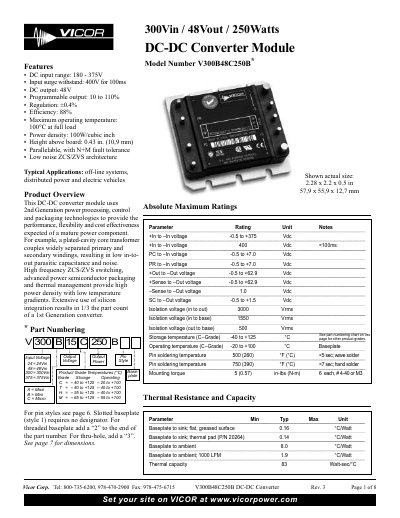

VICOR V300B48C250B 300Vin 48Vout 250Watts DC-DC Converter Module
This document is a datasheet for the Vicor V300B48C250B DC-DC converter module. The device utilizes 2nd Generation power processing and control technologies to deliver a 48V output from a 300V input with a maximum power rating of 250 Watts. It features a low noise ZCS/ZVS architecture and is designed for applications such as off-line systems, distributed power, and electric vehicles.
Read onlineVICOR 48VOUT specifications
| Input Voltage Range | 180 - 375 Vdc |
|---|---|
| Output Voltage | 48 Vdc |
| Output Power | 250 Watts |
| Efficiency | 88% |
| Maximum Operating Temperature | 100°C |
| Power Density | 100W/cubic inch |
| Height Above Board | 0.43 in. (10.9 mm) |
| Isolation Voltage (In to Out) | 3000 Vrms |
Source: VICOR V300B48C250B 300Vin 48Vout 250Watts DC-DC Converter Module
All VICOR 48VOUT documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input voltage range?
The module accepts a DC input range of 180 to 375 Vdc.
From: VICOR V300B48C250B 300Vin 48Vout 250Watts DC-DC Converter Module
Can the output voltage be programmed?
Yes, the output is programmable from 10% to 110% of the nominal setting.
From: VICOR V300B48C250B 300Vin 48Vout 250Watts DC-DC Converter Module
What is the input surge withstand rating?
The module can withstand an input surge of 500V for less than 100ms.
From: VICOR 375Vin 48Vout 150Watts DC-DC Converter Module Model Number V375C48C150B
What is the output voltage programming range?
The output voltage can be programmed from 10% to 110% of the nominal value.
From: VICOR 375Vin 48Vout 150Watts DC-DC Converter Module Model Number V375C48C150B
