Vicor VI-RAM™ Ripple Attenuator Modules reduce output ripple to less than 3mV peak-to-peak at loads up to 20A, and are compatible with VI-200/VI-J00 series products, with output voltages from 5 to 50V. They exhibit 93-99% efficiency, and retain remote sense and output voltage trim features.
The VI‑RAM ripple attenuator modules are designed to connect to Vicor VI‑200 or VI‑J00 converters, providing output voltages from 5 VDC to 50 VDC and handling loads up to 20 A. They combine active and passive filtering to achieve output ripple below 3 mV pp with efficiencies of 93‑99% and require no adjustments.

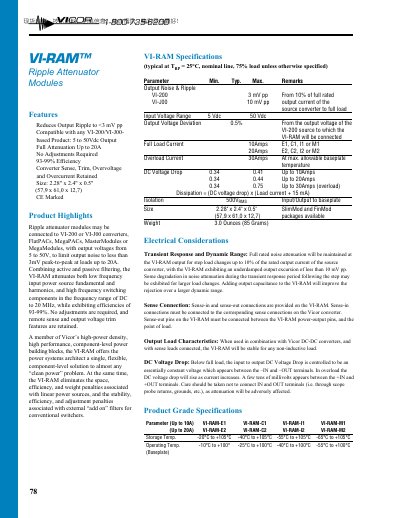

Key features include 500 V RMS isolation, compact size (2.28" × 2.4" × 0.5"), and retained sense, trim, over‑voltage and over‑current protection. The datasheet details electrical characteristics, transient response, and mechanical dimensions.
| Output Ripple | < 3 mV pp |
|---|---|
| Output Voltage Range | 5 VDC – 50 VDC |
| DC Voltage Drop (10 A) | 0.34 V |
| Isolation Rating | 500 V RMS |
| Dimensions | 2.28" × 2.4" × 0.5" |
| Weight | 3.0 oz (85 g) |
The VI‑RAM attenuates output ripple to less than 3 mV peak‑to‑peak.
It supports output voltages from 5 VDC to 50 VDC.
The module provides 500 V RMS isolation between input/output and the baseplate.
The module measures 2.28 in × 2.4 in × 0.5 in.
