This document is the datasheet of IXYS VUO 105-12NO7 1200V 140A bridge rectifier. It mainly introduces the features and characteristics of the product, including maximum current, rated voltage, package type, impedance, rated current, etc.

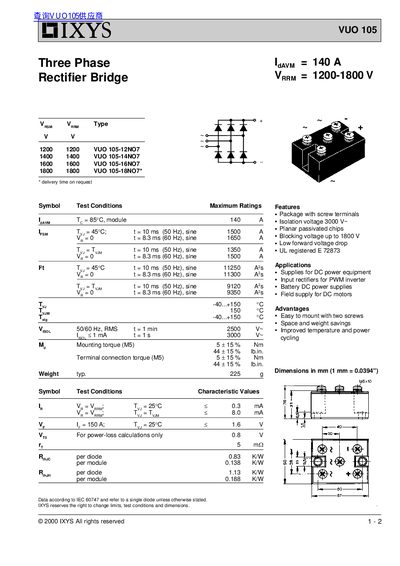

This document is a technical datasheet for the IXYS VUO 105 Three Phase Rectifier Bridge. It provides comprehensive information on maximum ratings such as forward current (IdAVM) up to 140 A and blocking voltage up to 1800 V.
The datasheet also lists characteristic values including forward voltage drop, thermal resistance per diode, and mounting torque specifications for the M5 screw terminals. It includes application areas like DC power equipment supplies and PWM inverter input rectifiers.
| Forward Current (IdAVM) | 140 A |
|---|---|
| Surge Current (IFSMTVJ = 45 /G176C) | 1500 A |
| Blocking Voltage (VR) | 1200-1800 V |
| Isolation Voltage | 3000 V~ |
| Mounting Torque (M5) | 15 % Nm |
| Weight | 225 g typ. |
It is used for supplies for DC power equipment, input rectifiers for PWM inverters, and battery DC power supplies.
The module offers easy mounting with two screws, space and weight savings, and improved temperature and power cycling.
