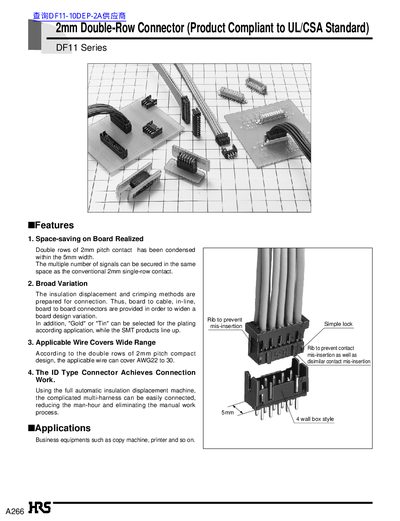

DF11 Series products are 2mm double-row connectors, with features of saving board space, diversified connection methods, wide range of applicable wire diameters, and the ability to achieve ID-type connection. They are used in business equipment such as copy machines and printers.
The HRS DF11 Series is a space-saving double-row connector with a 2mm pitch, designed to fit within a 5mm width. It supports both insulation displacement (ID) and crimping connection methods, allowing for board-to-cable, in-line, and board-to-board applications. The series is applicable to wires ranging from AWG22 to AWG30 and is available in tin or gold plating options.
| Pitch | 2mm |
|---|---|
| Width | 5mm |
| Applicable Wire Size | AWG22 to 30 |
| Operating Temperature Range | -30 to 85°C |
| Operating Humidity Range | 40 to 80% |
| Storage Temperature Range | -10 to 60°C |
| Insulation Resistance | 1000M ohms min. |
| Withstanding Voltage | 650V AC/1 minute |
| Contact Resistance | 30m ohms max. |
The DF11 Series supports both insulation displacement and crimping methods.
The setup time has been reduced to a maximum of 10 minutes.
The design achieves about half the space compared with conventional machines.
