This document describes the features and characteristics of the A226 and A227 series connectors, including stacking height, SMT coplanarity, mating guide, mis-insertion prevention, and two-piece connection product. Suitable for applications such as PCs and business equipment that require miniaturization or light weight.

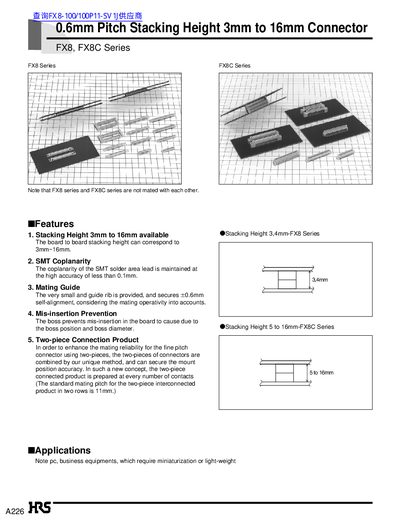

This document provides technical details for the HRS FX8 and FX8C series of board-to-board stacking connectors with a 0.6mm pitch. The series supports stacking heights ranging from 3mm to 16mm and features high-accuracy SMT coplanarity of less than 0.1mm.
| Pitch | 0.6mm |
|---|---|
| Stacking Height Range | 3mm to 16mm |
| SMT Coplanarity | less than 0.1mm |
| Current Rating | 0.4A |
| Operating Temperature Range | -55°C to +85°C |
| Insulation Resistance | 1000M ohms min |
The connector operates between -55°C and +85°C.
The maximum contact resistance is 45m ohms at 100mA.
