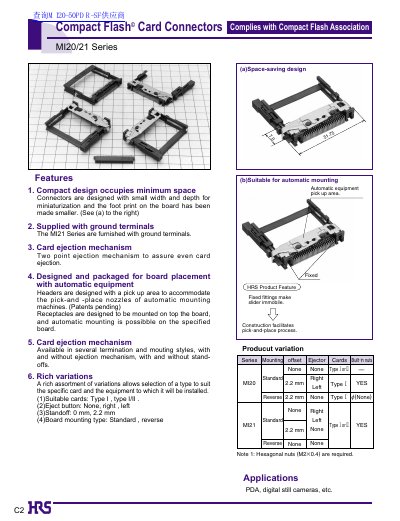

This document introduces C2 Compact Flash© Card Connectors MI20/21 Series. The series features compact design, ground terminals, card ejection mechanism and suitable for PDA, digital still cameras etc.
The HRS MI20/21 Series Compact Flash Card Connectors are designed with a small width and depth for miniaturization, reducing the footprint on the board. The MI21 Series includes ground terminals, and both series feature a two-point ejection mechanism to ensure even card ejection. These connectors are designed and packaged to accommodate automatic mounting machines, with headers featuring a pick-up area for nozzles and receptacles mountable on top of the board.
| Insulation resistance | 1,000 M ohms min. |
|---|---|
| Contact resistance | 40 m ohms max. |
The connectors are suitable for Type I and Type I/II cards.
Yes, the MI21 Series are furnished with ground terminals.
Yes, headers are designed with a pick-up area for automatic mounting machines, and receptacles can be mounted on top of the board for automatic mounting.
