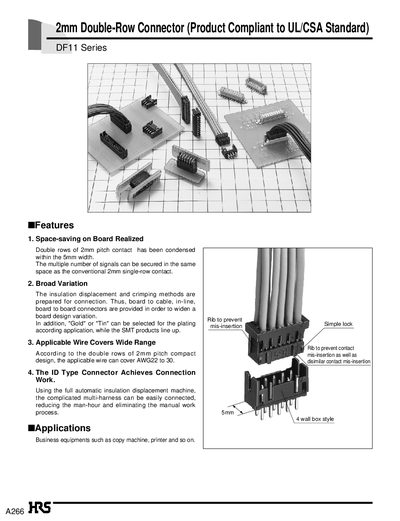

A266 2mm Double-Row Connector (Product Compliant to UL/CSA Standard) DF11 Series features: 1. Space-saving on Board: Double rows of 2mm pitch contact condensed within the 5mm width, allowing multiple signals to be secured in the same space as the conventional 2mm single-row contact. 2. Broad Variation: Various connection methods available, including insulation displacement and crimping, for board to cable, in-line, and board to board connectors. Plating options of 'Gold' or 'Tin' can be selected based on application. SMT products are also available. 3. Applicable Wire Covers Wide Range: The compact design with double rows of 2mm pitch allows for compatibility with wire sizes AWG22 to 30. 4. The ID Type Connector Achieves Connection Work: Using a fully automatic insulation displacement machine, complex multi-harness connections can be easily made, reducing labor hours and eliminating manual work processes.
The HRS DF11 Series is a 2mm double-row connector designed to save board space by condensing double rows of 2mm pitch contacts within a 5mm width. It supports various connection methods, including insulation displacement and crimping, allowing for board-to-cable, in-line, and board-to-board applications. The series offers plating options of Gold or Tin and is compatible with wires ranging from AWG22 to AWG30.
| Pitch | 2mm |
|---|---|
| Width | 5mm |
| Applicable Wire Size | AWG22 to 30 |
| Operating Temperature Range | -30 to 85°C |
| Operating Humidity Range | 40 to 80% |
| Storage Temperature Range | -10 to 60°C |
| Insulation Resistance | 1000M ohms min. |
| Withstanding Voltage | 650V AC/1 minute |
| Contact Resistance | 30m ohms max. |
The DF11 Series is applicable for business equipments such as copy machine and printer.
The DF11 Series offers Gold or Tin plating options according to the application.
The setup time for the DF11 Insulation Displacement Machine has been widely reduced to a maximum of 10 minutes.
