11DQ09/11DQ10 Schottky rectifier is a low power, high frequency diode with very low forward voltage drop and moderate leakage. Typical applications are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection.

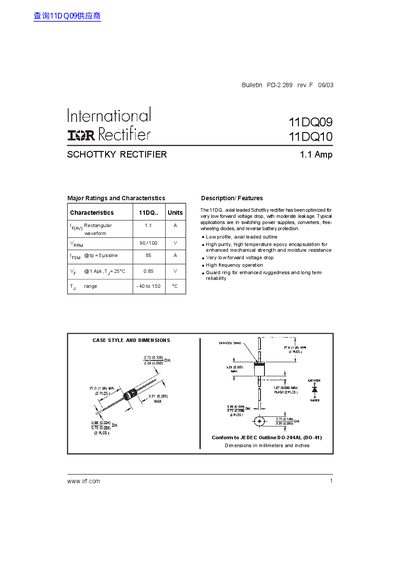

The document provides a comprehensive overview of the 11DQ series Schottky rectifiers, highlighting their optimization for low forward voltage drop and high frequency operation. Key features include a low profile axial leaded outline, high purity epoxy encapsulation, and a guard ring design for enhanced ruggedness.
| Average Forward Current (If) | 1.1 A |
|---|---|
| Forward Voltage Drop (VF) | 0.85 V |
| Junction Temperature Range | -40 to 150 °C |
| Case Style | DO-204AL (DO-41) |
Typical applications include switching power supplies, converters, freewheeling diodes, and reverse battery protection.
The maximum junction temperature range is -40 to 150 °C.
They conform to JEDEC Outline DO-204AL (DO-41).
