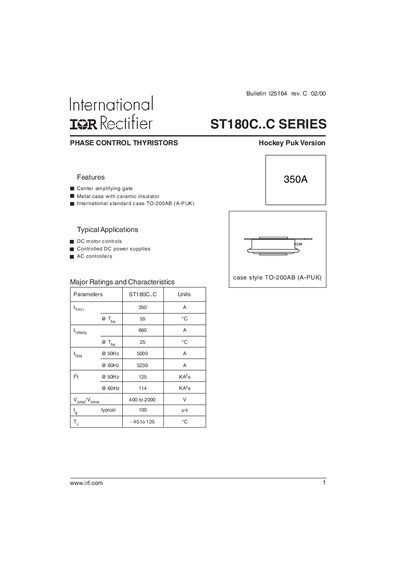

lnternational IOR Rectifier ST180C..C SERIES Data Sheet1

The ST180C..C series is IRF's 350A phase control thyristors.

Brand: International Rectifier
Document type: Datasheet
Language: English
Pages: 8
File format: PDF
File size: 92 KB
Published: 07 June, 2012
Updated: 30 September, 2023
MD5 checksum: 496CA548BCA011F86A9B6E3E0FDF2F24
PDF: lnternational IOR Rectifier ST180C..C SERIES Data Sheet1 PDF

About this manual

This document provides a comprehensive technical overview of the International Rectifier ST180C..C Series Phase Control Thyristors. It covers major ratings such as average on-state current up to 350A and voltage ratings ranging from 400V to 2000V. The datasheet includes detailed electrical specifications for switching, blocking, and triggering parameters.

What's inside

Features
Typical Applications
Major Ratings and Characteristics
Electrical Specifications
Thermal and Mechanical Specification
Ordering Information Table
Outline Table

Specifications

Max. average on-state current	350 A
Voltage rating range	400 to 2000 V
Max. operating temperature range	-40 to 125 °C
Case style	TO-200AB (A-PUK)

Frequently asked questions

What are the typical applications for this thyristor?

Typical applications include DC motor controls, controlled DC power supplies, and AC controllers.

What is the maximum operating temperature range for these thyristors?

The device can operate between -40 and 125 °C.

What are the maximum average on-state current ratings at different heatsink temperatures?

The rating is 350 A at a 55 °C heatsink temperature and 660 A at a 25 °C heatsink temperature.

What is the maximum non-repetitive surge current for a single cycle?

The maximum peak one-cycle non-repetitive surge current is 5000 A.
