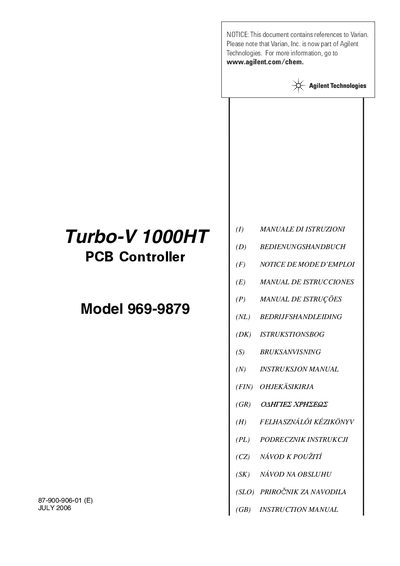

This is a user manual for Turbo-V 1000HT PCB Controller.
The document is a user manual for the Turbo-V 1000HT PCB Controller (Model 969-9879), originally manufactured by Varian Vacuum Technologies before being acquired by Agilent Technologies. The controller is described as a microprocessor-controlled frequency converter designed to automatically drive Turbo-V 1000HT PGB series pumps through a ten-step startup process, monitoring voltage and current relative to pump speed.
The manual details the preparation for installation, including unpacking checks and environmental storage conditions (temperature -20°C to +70°C). It provides specific instructions on electrical interconnections between the controller, an external transformer, and the vacuum pump. Key operational topics include remote control modes, starting and shutting down pumps, low-speed operation procedures, and handling power failures.
| Temperature Range | -20 °C to +70°C |
|---|---|
| Relative Humidity | 0 - 95% (non condensante) |
No, the controller must be powered by an external transformer which is not supplied with the unit.
It is a frequency converter controlled by a microprocessor that incorporates circuitry for the automatic operation of Turbo-V 1000HT PCB pumps.
The controller must be stored at temperatures between -20 °C and +70°C.
The storage environment must have a relative humidity of 0 to 95% non-condensing.
