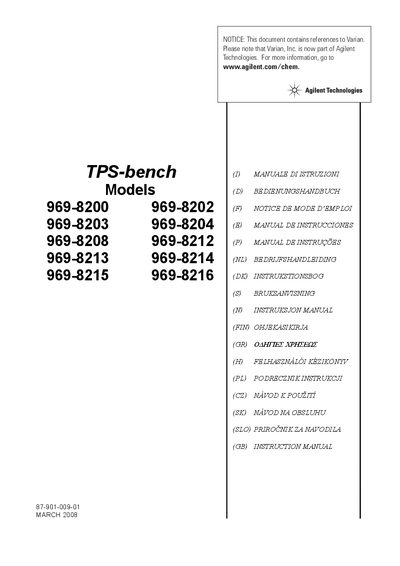

TPS-bench manual, introducing the characteristics and usage of TPS-bench
The document is a multi-language user manual for the TPS-bench vacuum pumping group. It covers various models including 969-8200 through 969-8216, which utilize turbo pumps and foreline pumps controlled by an integrated controller.
Key sections include safety warnings regarding high kinetic energy rotors and temperatures, installation requirements such as fixing the unit to a support plane, and operational guidelines for remote control of pump start/stop functions. The manual specifies environmental conditions for operation and storage. This manual is written in Italian.
| Voltage | 110 to 125 Vac or 200 to 240 Vac |
|---|---|
| Frequency | 50/60 Hz |
| Power Consumption (Min) | 627 VA |
| Power Consumption (Max) | 1360 VA |
| Storage Temperature | -20 °C to +70 °C |
The TPS-bench must be fixed to a support plane using appropriate fittings to prevent movement in case of sudden stops.
The TPS-bench is a pumping group that includes a turbo pump, a foreline vacuum pump, a controller, and an optional unit.
During operation, the temperature must be between 0 °C and +40 °C with relative humidity from 0 to 95% non-condensing.
When reinstalling the pump, use screws with a yield load of 550 N/mm² and apply a tightening torque of 4.5 Nm.
