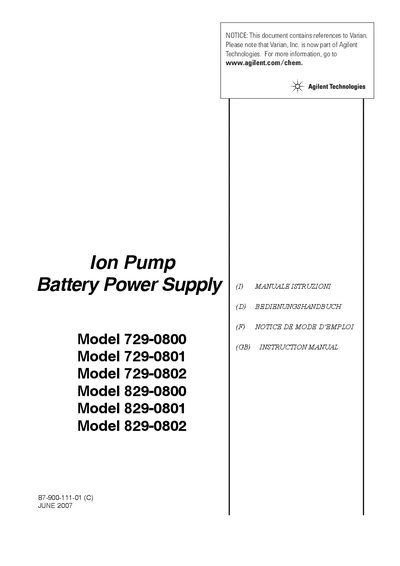

This manual describes the installation and use of Ion Pump Battery Power Supply (Ion Pump HV P.S.).
The document is a multilingual user guide for the Ion Pump Battery Power Supply unit. It covers the principle of operation, which involves monitoring ion pump current to determine if the high voltage discharge is active or inactive based on LED status.
The manual details preparation for installation, including battery placement and removing protective mylar strips. It lists technical specifications such as a 9V non-rechargeable battery power source, an unregulated output of -3.0 to -1.5 kV (for 729 models) or +3.0 to +1.5 kV (for 829 models), and a maximum current of 1 mA.
| Power Source | 9V non-rechargeable battery (PP3) |
|---|---|
| Output Voltage Range | -3.0 to -1.5 kV for Model 729; +3.0 to +1.5 kV for Model 829 |
| Maximum Output Current | 1 mA |
| Dimensions | 150x80x55 mm |
It requires a commercially available non-rechargeable PP3 type 9V battery (e.g., Duracell Plus).
The unit measures 150x80x55 mm.
