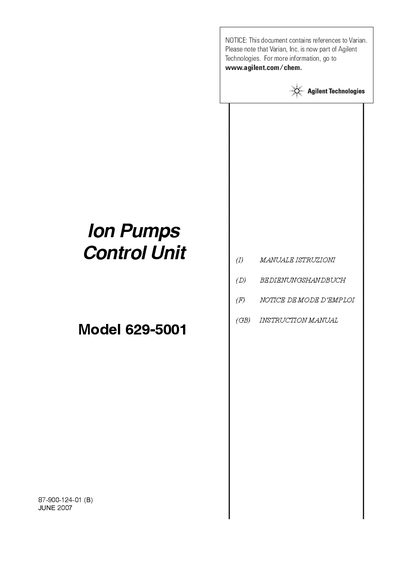

This document is an instruction manual for Ion Pumps Control Unit Model 629-5001 vacuum technologies. It provides information on the controller's specifications, connection methods, and operation modes.
The Agilent 629-5001 Ion Pumps Control Unit is designed to drive up to two ion pumps simultaneously and independently. It provides high voltage power (maximum output 5000 Vdc) to the pumps via connection to the main power supply. The unit can be operated in remote/local I/O mode or serial mode through an RS232 port, with operational selection made via a switch on the front panel.
The document details the setup and installation requirements, including environmental conditions for storage (temperature -20°C to +70°C) and operation (+5°C to +40°C). It describes the front panel controls and indicators, such as the Mains ON LED and High Voltage switches/LEDs for Pump 1 and Pump 2. The manual also covers serial communication protocols, including report modes and command structures for operator and technician use.
| Max Output Voltage | 5000 Vdc |
|---|---|
| Pump Capacity | Up to 2 pumps simultaneously |
| Storage Temperature | -20°C to +70°C |
| Operating Temperature | +5°C to +40°C |
The controller is capable of driving up to two ion pumps simultaneously and independently.
The controller provides high voltage to ion pumps with a maximum output of 5000 Vdc.
