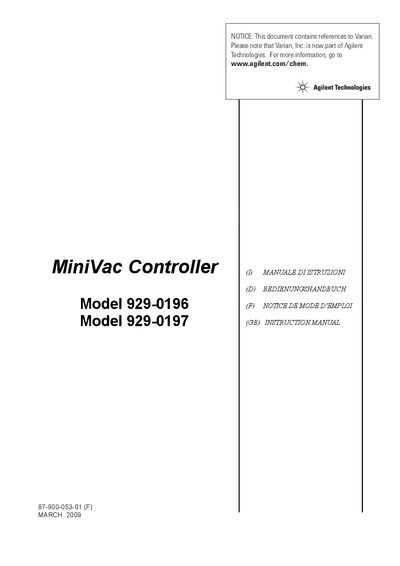

Agilent MiniVac Controller 929-0196/9197 User Manual

This document provides instructions, technical information, installation, operation, and maintenance for the MiniVac controller.

Brand: Agilent
Document type: User Manual
Language: English
Pages: 32
File format: PDF
File size: 3.4 MB
Published: 07 June, 2012
Updated: 28 September, 2023
MD5 checksum: 5B3607A9D908D394F473D5CF7F364C0F
PDF: Agilent MiniVac Controller 929-0196/9197 User Manual PDF

About this manual

The document serves as an instruction manual for the MiniVac Controller, specifically models 929-0196 (FISCHER type connector) and 929-0197 (KINGS type connector). It details safety precautions regarding high voltage, environmental conditions for operation and storage, and proper installation procedures including interlock cable usage.

What's inside

MINIVAC DESCRIPTION
CONTROLLER SPECIFICATIONS
INSTALLATION
OPERATION
Pressure Determination
Power Failure
Remote Control Mode Operation
MAINTENANCE
Troubleshooting

Specifications

Operating Temperature	0 °C to +45 °C
Storage Temperature	-20 °C to +70 °C
Relative Humidity	0 - 95% (non-condensing)

Frequently asked questions

What are the two models covered in this manual?

The manual covers Model 929-0196 and Model 929-0197.

What type of connector does the 929-0196 model use?

The 929-0196 model uses a FISCHER type High voltage connector.

What type of connector does the 929-0197 model use?

The 929-0197 model uses a KINGS type High voltage connector.
