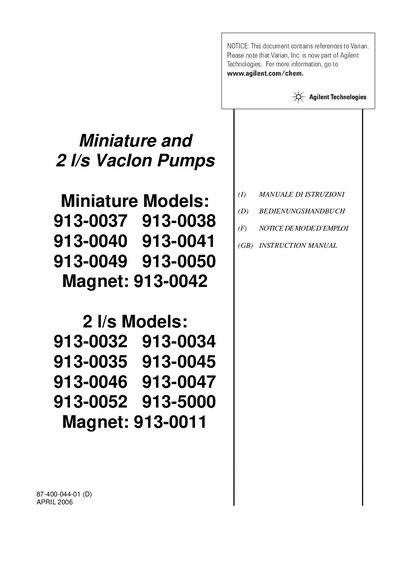

This document is the instruction manual for Agilent's miniature and 2 l/s VacIon pumps. It introduces the safety information, general information, installation information, operating information, and abnormal working conditions of the vacuum pump.
This document serves as an instruction manual for a range of Agilent Technologies vacuum products, specifically the Miniature and 2 l/s Vaclon pumps. It notes that these models were previously manufactured by Varian Vacuum Technologies, which is now part of Agilent Technologies.
The guide provides detailed instructions on safety, general information, installation procedures including control unit connection, operating notes such as bakeout operations, and handling unusual operating conditions like low or high current.
These pumps function as getter pumps in the field from 10° Torr to less than 10° Torr.
The pump must be powered by a positive voltage of 3000-3500 Volt (open circuit).
Gaskets must be made of soft metal such as annealed copper, aluminum, or gold.
