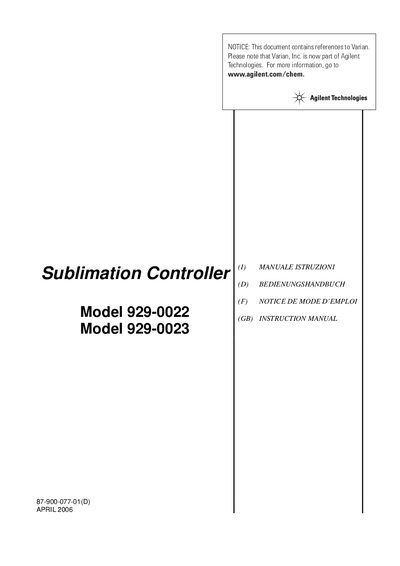

This document is an instruction manual for the Sublimation Controller Model 929-0022 Model 929-0023, providing information on configuration selection, operating mode selection, parameter setting, operational flowchart, etc.
This document serves as an instruction manual for the Varian Sublimation Controller, specifically models 929-0022 (120 Vac) and 929-0023 (220 Vac). It provides guidance on storage conditions, installation requirements including rack mounting, and safety precautions regarding high internal voltages. The manual details the various operating modes available: MANUAL, AUTOMATIC, REMOTE SET, and AUTOMAT/REMOTE.
| Input Voltage (Model 929-0022) | 90 to 125 Vac |
|---|---|
| Operating Temperature (Operation) | +5 °C to +45 °C |
| Relative Humidity (Storage) | 0 - 95% non-condensing |
The controller supports MANUAL, AUTOMATIC, REMOTE SET, and AUTOMAT/REMOTE modes.
It must be inserted into an adapter that is four units high to prevent it from falling inside the rack.
