Agilent Technologies Mini Ti-Ball Titanium Sublimation Source 916-0009 Manual

Q: What are the storage temperature conditions for this equipment?

The equipment can be stored at temperatures between -20 °C and +70 °C.

Q: Does the Mini Ti-Ball Source require water cooling?

No, it requires no additional water cooling or power beyond a standard filament supply.

Q: What is the maximum operating current for the source?

The maximum operating current is 50 amps.

This instruction manual is for the Mini Ti-BallTM titanium sublimation source, including technical information, overview, installation, maintenance, etc.

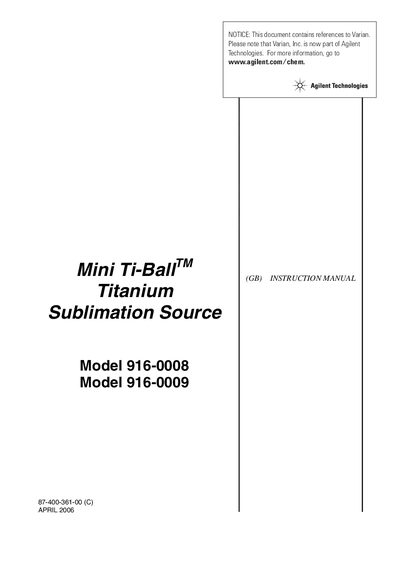

Agilent Technologies Mini Ti-Ball Titanium Sublimation Source 916-0009 Manual - cover page

Brand: Agilent
Document type: User Manual
Language: English
Pages: 15
File format: PDF
File size: 1.1 MB
Published: 07 June, 2012
Updated: 01 October, 2023
Model: 6000
MD5 checksum: B1B209281F2A74BC90F5854B5006F2AC
PDF: Agilent Technologies Mini Ti-Ball Titanium Sublimation Source 916-0009 Manual PDF

About this manual

This instruction manual provides guidance for the Agilent Mini Ti-Ball™ Titanium Sublimation Source, a device designed for getter pumping in high vacuum and ultrahigh vacuum systems. The unit is directly interchangeable with Varian's standard TSP filament cartridge and requires no additional water cooling or power beyond a standard 380 Watt AC supply.

What's inside

General Information
Storage Conditions
Overview
Mounting Dimensions
Installation
Control Unit Connection
Maintenance
Cleaning Procedures
Part List

Specifications

Vacuum Flange Size	23/4" OD ConFlat®
Bakeability (Normal)	up to 250 °C
Total Usable Titanium	15.2 grams max.
Operating Current	50 amps max.
Voltage at Holder	7.6 V
Operating Pressure Range	< 20 millitorr
