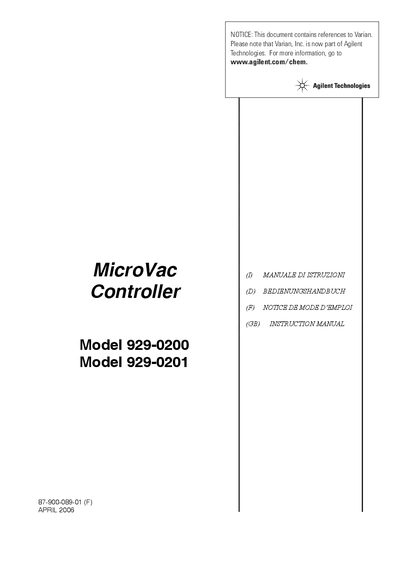

Agilent Technologies MicroVac Controller Model 929-0200/0201 User Manual

About this manual

The document serves as a comprehensive user guide for the MicroVac Controller, covering preparation for installation, usage procedures, and troubleshooting. It details the controller's function as a high-voltage, low-power power supply designed to drive ion pumps using an integrated microprocessor.

Key sections include safety warnings regarding high voltage, environmental conditions for operation and storage, and specific instructions for connecting the pump and accessories. The manual also outlines how to replace components, perform remote control operations, and utilize the corrective action request form for reporting issues.

What's inside

• Controller Description
• Installation
• Use
• Interconnections
• Replacement
• Troubleshooting
• Accessories and Spare Parts

Frequently asked questions

What are the required storage temperature and humidity conditions for the MicroVac controller?

The unit must be stored at temperatures between -20 °C and +70 °C with relative humidity from 0 to 95% (non-condensing).

What are the operating temperature and humidity limits for using the controller?

During operation, the environment must maintain temperatures from 0 °C to +45 °C and relative humidity from 0 to 95% (non-condensing).

What type of high voltage connector is included with the Model 929-0201?

The Model 929-0201 comes equipped with a KINGS type High voltage connector designed for 220 Vac, 50/60 Hz.
