This manual provides instructions for using TPS-compact, including descriptions of the turbopump, controller, control panel, and scroll pump, as well as the product's technical specifications, TPS-compact outline, inlet screen installation, high vacuum flange connection, high vacuum flange connection configurations, and interconnection.

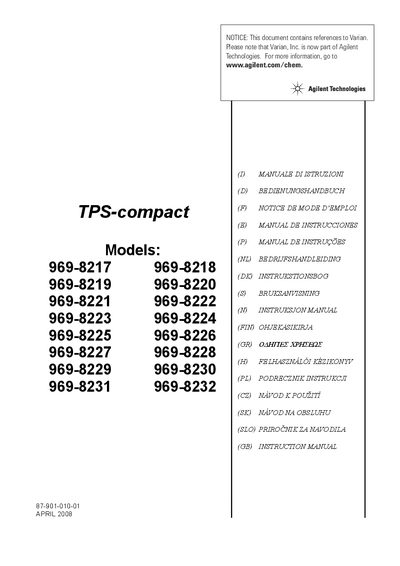

The document is a user manual for the Agilent TPS-compact, an integrated pumping system consisting of a turbomolecular pump, a controller, and a primary scroll pump. It is designed for professional use in high and ultra-high vacuum applications to pump gases but not liquids or solids.
The guide covers safety warnings regarding rotor failure and kinetic energy, storage conditions, installation procedures including flange connections, and operational parameters such as environmental limits for temperature and humidity.
| Operating Temperature Range | +5 °C to +35°C |
|---|---|
| Relative Humidity (Non-condensing) | 0 - 95% |
| Maximum Operating Pressure | 2 bar above atmospheric pressure |
| Storage Temperature Range | -20 °C to +70 °C |
| Maximum Storage Time | 10 months from shipping date |
The system can pump any type of gas or gaseous compound, but it is not suitable for liquids or solid particles.
The pump must be started in Soft-Start mode upon first use after receipt and storage time should not exceed 10 months.
