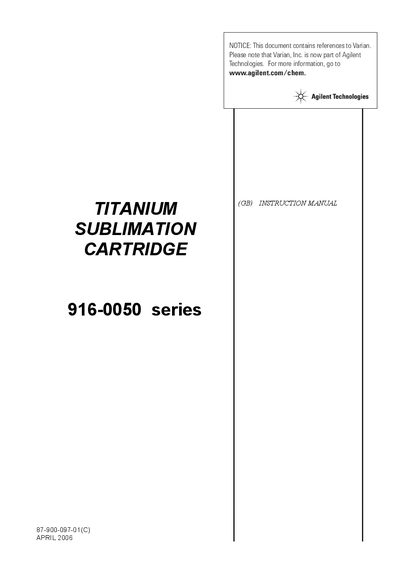

This document is an instruction manual for the Titanium Sublimation Cartridge 916-0050 series, providing information on installation, operation, and maintenance of the product.
This document provides instructions for the Agilent Technologies TSP (Titanium Sublimation Pumping) Cartridge, model 916-0050. The cartridge is designed to provide a titanium source for pumping chemically active gases in high vacuum and baked ultra-high vacuum systems.
| Material | 85Ti-15Mo |
|---|---|
| Length | 162.4mm |
| Diameter | 1.99 mm |
| Total Titanium | 2.7 gr |
| Maximum power | 225 Watts |
| Operating voltage | 4.5 V at holder |
| Life | 12 hr at 50 A |
A filament has a life of 12 hours when operated at 50 Amperes.
The sublimation rate ranges from 0.09 to 0.1 grams per hour.
