CYM1730 is a 64K x 24 static RAM module introduced by Cypress Semiconductor Corporation. This module features high density, high-speed CMOS SRAM, low power consumption, and is suitable for commercial temperature range. The module uses SMD technology and has TTL-compatible inputs and outputs.

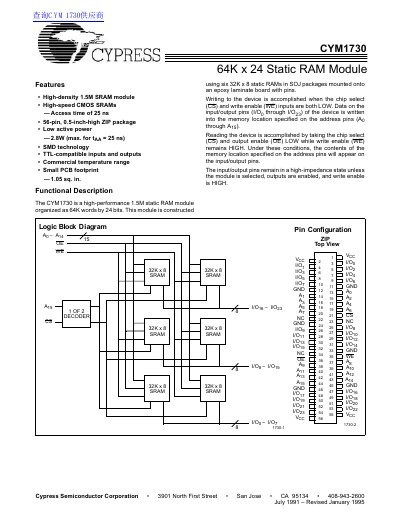

The Cypress CYM1730 is a high-performance static RAM module organized as 64K words by 24 bits. It is constructed using six 32K x 8 static RAMs mounted on an epoxy laminate board and housed in a 56-pin, 0.5-inch-high ZIP package.
| Capacity | 64K words by 24 bits (1.5M SRAM) |
|---|---|
| Access Time | 25 ns, 30 ns, or 35 ns |
| Package Type | 56-pin ZIP package |
| Temperature Range (Commercial) | 0°C to +70 °C |
The maximum operating current is 510 mA.
The module uses six 32K x 8 static RAMs.
Writing occurs when both chip select (CS) and write enable (WE) inputs are LOW.
