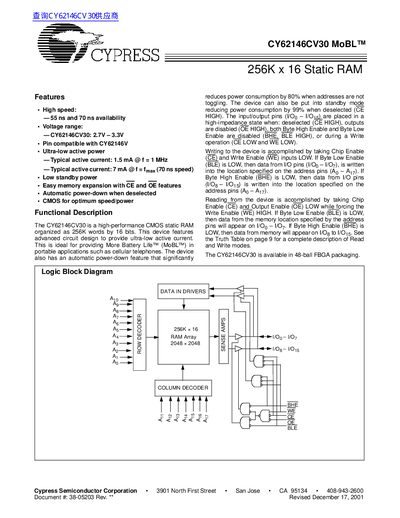

The CY62146CV30 is a high-performance CMOS static RAM organized as 256K words by 16 bits. This device features advanced circuit design to provide ultra-low active current. This is ideal for providing More Battery Life™ (MoBL™) in portable applications such as cellular telephones.
The document describes the CY62146CV30, a high-performance CMOS static RAM organized as 256K words by 16 bits. It is designed for portable applications such as cellular telephones due to its More Battery Life (MoBL) features, including ultra-low active current and automatic power-down capabilities.
| Organization | 256K words x 16 bits |
|---|---|
| Voltage Range | 2.7V to 3.3V |
| Typical Active Current (55ns) | 1.5 mA @ f = 1 MHz |
| Typical Active Current (70ns) | 7 mA @ f = fmax |
| Operating Temperature Range | -40°C to +85°C |
| Package Type | 48-ball FBGA |
The device operates with a supply voltage between 2.7V and 3.3V.
Power consumption is reduced by 99% when the device is deselected.
