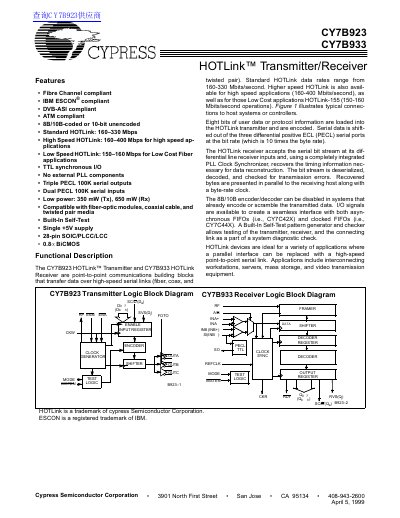

The CY7B923 HOTLink™ Transmitter and CY7B933 HOTLink Receiver are point-to-point communications building blocks that transfer data over high-speed serial links (fiber, coax, and twisted pair).
The Cypress CY7B923 HOTLink Transmitter and CY7B933 HOTLink Receiver are point-to-point communication building blocks designed to transfer data over high-speed serial links. These devices support fiber-optic, coaxial cable, and twisted pair media, complying with standards such as Fibre Channel, IBM ESCON, DVB-ASI, and ATM. They operate at data rates ranging from 150 Mbps to 400 Mbps and feature integrated PLL clock synchronizers to recover timing information from the serial bit stream.
| Standard HOTLink Data Rate | 160–330 Mbps |
|---|---|
| High Speed HOTLink Data Rate | 160–400 Mbps |
| Low Speed HOTLink Data Rate | 150–160 Mbps |
| Power Consumption (Transmitter) | 350 mW |
| Power Consumption (Receiver) | 650 mW |
| Supply Voltage | Single +5V |
| Package Types | 28-pin SOIC/PLCC/LCC |
The devices are compliant with Fibre Channel, IBM ESCON, DVB-ASI, and ATM protocols.
They are compatible with fiber-optic modules, coaxial cable, and twisted pair media.
No, the devices feature no external PLL components.
