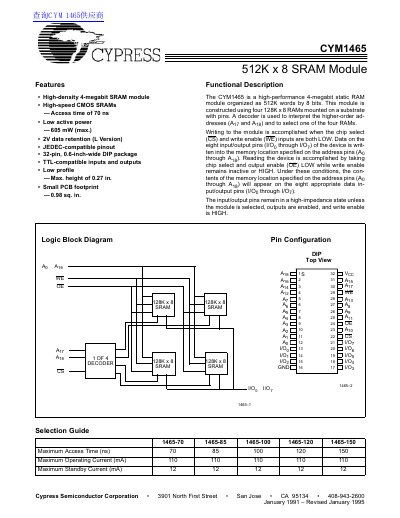

The CYM1465 is a high-performance 4-megabit static RAM module organized as 512K words by 8 bits, which is produced by Cypress Semiconductor Corporation. It features high density, high speed, low power consumption, 2V data retention, JEDEC-compatible pinout, 32-pin, 0.6-inch-wide DIP package, TTL-compatible inputs and outputs, low profile, and small PCB footprint.
The CYM1465 is a high-performance static RAM module organized as 512K words by 8 bits. It is constructed using four 128K x 8 RAMs mounted on a substrate with pins and features a JEDEC-compatible pinout in a 32-pin, 0.6-inch-wide DIP package.
| Capacity | 4-megabit (512K x 8) |
|---|---|
| Access Time | 70 ns to 150 ns |
| Package Type | 32-pin DIP Module |
| Operating Voltage | 5V ± 10% |
| Max Operating Current | 110 mA |
The maximum access times range from 70 ns to 150 ns depending on the specific speed variant.
Yes, the module features a JEDEC-compatible pinout.
