5N100 and 5N100A are N-channel enhancement mode standard power MOSFETs from IXYS. The products have international standard packages, low RON, high reliability and other characteristics. They are suitable for switch-mode and resonant-mode power supplies, motor controls, uninterruptible power supplies (UPS) and DC choppers.

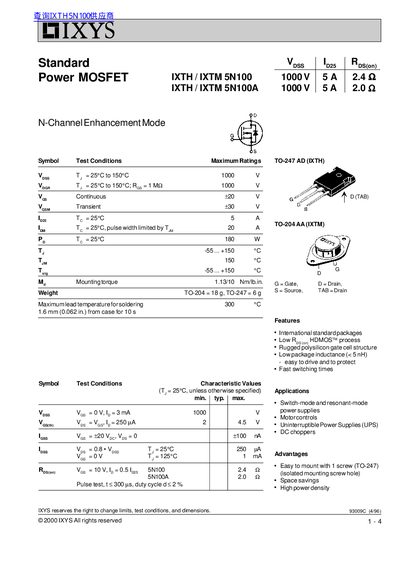

The document details the maximum ratings and characteristic values for the IXTH 5N100 and IXTM 5N100A models, including parameters such as drain-source voltage, continuous current, and on-resistance. It specifies that these devices feature an N-Channel Enhancement Mode structure with TO-204 AA (IXTM) and TO-247 AD (IXTH) standard packages.
| Drain-Source Voltage (VDS) | 1000 V |
|---|---|
| Continuous Drain Current (ID) at 25°C | 5 A |
| Operating Junction Temperature Range | -55 ... +150 °C |
| Package Types | TO-204 AA (IXTM), TO-247 AD (IXTH) |
They are suitable for switch-mode and resonant-mode power supplies, motor controls, uninterruptible power supplies (UPS), and DC choppers.
The recommended mounting torque is 1.13 Nm or 10 lb.in.
