CMSH5-20, CMSH5-40, CMSH5-60, CMSH5-100 are 5.0A surface mount silicon Schottky rectifiers produced by Central Semiconductor Company. They have low cost, high reliability and high consistency.

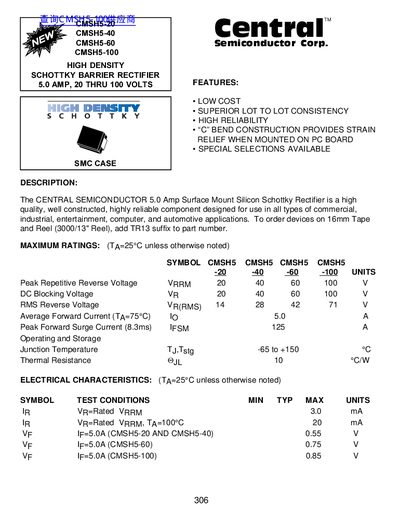

The document describes the CENTRAL SEMICONDUCTOR 5.0 Amp Surface Mount Silicon Schottky Rectifier as a high quality, well constructed, highly reliable component designed for use in commercial, industrial, entertainment, computer, and automotive applications.
It provides maximum ratings including peak repetitive reverse voltage ranging from 20 to 100 volts, DC blocking voltage, average forward current of 5.0 A, and operating junction temperatures from -65 to +150 °C. Electrical characteristics such as reverse leakage current and forward voltage drop are also listed for different models.
| Peak Forward Surge Current (8.3ms) | 125 A |
|---|---|
| Operating and Storage Junction Temperature | -65 to +150 °C |
| Thermal Resistance QJL | 10 °C/W |
| Peak Repetitive Reverse Voltage (CMSH5-20) | 20 V |
The available models cover voltages from 20 to 100 volts.
The rectifier has an average forward current of 5.0 A at a temperature of 75°C.
The device operates and stores within a junction temperature range of -65 to +150 °C.
