The document describes the features and characteristics of the CENTRAL SEMICONDUCTOR CMPZDC2V4 series silicon dual zener diode, which is a voltage regulator commonly used in industrial, commercial, entertainment, and computer applications.

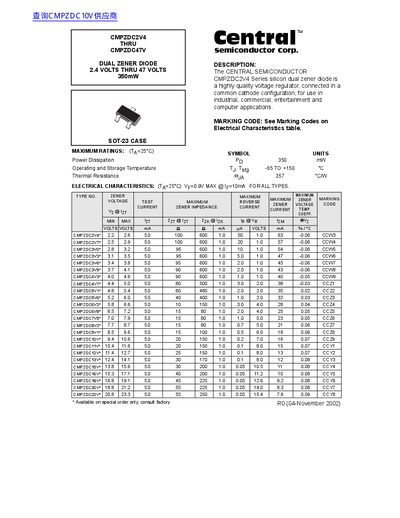

This document describes the CENTRAL SEMICONDUCTOR CMPZDC Series silicon dual zener diode, a highly quality voltage regulator connected in a common cathode configuration. The series is designed for use in industrial, commercial, entertainment, and computer applications with voltages ranging from 2.4 volts to 47 volts.
| Power Dissipation | 350 mW |
|---|---|
| Operating Temperature Range | -65 to +150 °C |
| Thermal Resistance (Theta JA) | 357 °C/W |
| Package Type | SOT-23 |
The maximum power dissipation for these devices is rated at 350 mW.
These diodes can operate and be stored between -65°C and +150°C.
The test condition specifies a maximum reverse voltage of 0.9V at 10mA.
