The CMSZDA2V4 series silicon dual zener diodes are high quality voltage regulators, connected in a common anode configuration, for use in industrial, commercial, entertainment and computer applications.

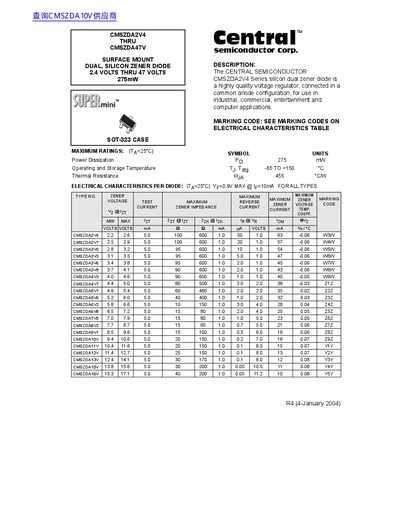

This document provides technical specifications for the Central Semiconductor Corp. CMSZDA2V4 through CMSZDA47V series of surface mount dual silicon zener diodes. These devices are highly quality voltage regulators connected in a common anode configuration, designed for use in industrial, commercial, entertainment, and computer applications.
| Power Dissipation | 275 mW |
|---|---|
| Operating Temperature Range | -65 TO +150 °C |
| Thermal Resistance | 455 CAV |
| Package Type | SOT-323 CASE |
The device covers a voltage range from 2.4 volts through 47 volts.
The maximum power dissipation is rated at 275 mW.
The device operates and stores within a range of -65 to +150 °C.
