The CENTRAL SEMICONDUCTOR CMSZ5221B Series Silicon Zener Diode is a high quality voltage regulator for use in industrial, commercial, entertainment and computer applications. Higher voltage devices are available on special order.

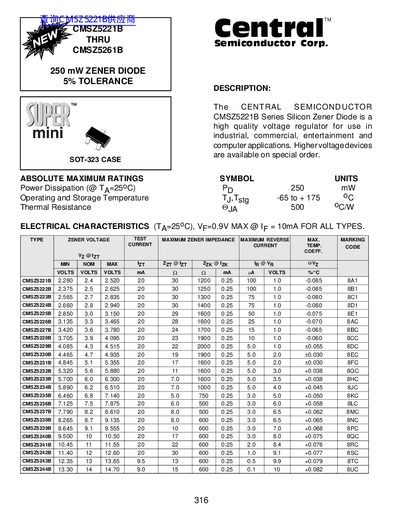

This document provides technical specifications and electrical characteristics for the Central Semiconductor CMSZ5221B Series Silicon Zener Diode. These devices are designed as high-quality voltage regulators suitable for industrial, commercial, entertainment, and computer applications.
The datasheet lists absolute maximum ratings, including a power dissipation of 250 mW at 25°C and an operating temperature range from -65 to +175 °C. It details the electrical characteristics for various models within the series, covering zener voltage ranges from 2.4V to 49.35V.
| Power Dissipation (Ta=25°C) | 250 mW |
|---|---|
| Operating and Storage Temperature | -65 to +175 °C |
| Thermal Resistance (OJA) | 500 OCW |
| Zener Voltage Tolerance | 5% |
These diodes operate and store between -65°C and +175°C.
