CMSSH-3 CMSSH-3A CMSSH-3C CMSSH-3S are super-mini Schottky diodes, manufactured by CENTRAL SEMICONDUCTOR. They are designed for fast switching applications requiring a low forward voltage drop.
This document describes the CENTRAL SEMICONDUCTOR CMSSH-3 Series types, which are Silicon Schottky diodes epoxy molded in a super-mini surface mount package. These devices are designed for fast switching applications requiring a low forward voltage drop.

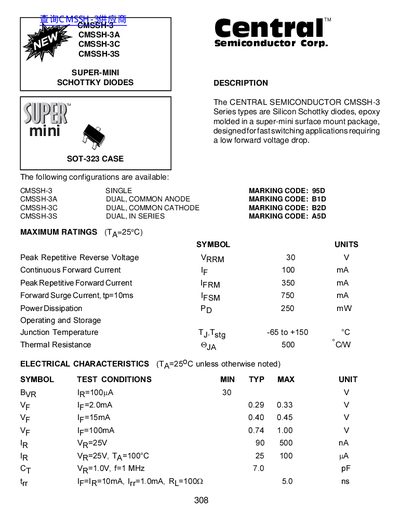

The datasheet provides maximum ratings and electrical characteristics for four specific configurations: single (CMSSH-3), dual common anode (CMSSH-3A), dual common cathode (CMSSH-3C), and dual in series (CMSSH-3S). It also includes a mechanical drawing with dimensions.
| Peak Repetitive Reverse Voltage (VRRM) | 30 V |
|---|---|
| Continuous Forward Current (IF) | 100 mA |
| Peak Repetitive Forward Current (lFRM) | 350 mA |
| Forward Surge Current (IFSM) | 750 mA |
| Power Dissipation (Pp) | 250 mW |
| Operating and Storage Junction Temperature Range | -65 to +150 °C |
The marking code for the CMSSH-3 single configuration is 95D.
The maximum continuous forward current is rated at 100 mA.
The diodes operate between -65°C and +150°C.
