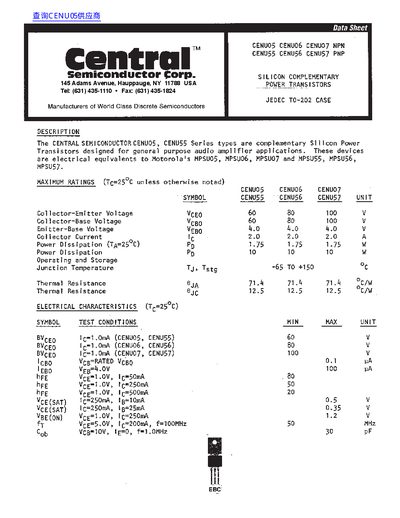

This document is a datasheet for the Central Semiconductor CENU05, CENU06, CENU07, CENU55, CENU56, and CENU57 series. These devices are complementary silicon power transistors designed for general purpose audio amplifier applications and are electrical equivalents to Motorola's MPSU05, MPSU06, MPSU07, MPSU55, MPSU56, and MPSU57.
| Collector-Emitter Voltage (Vceo) | 60V (CENU05/CENU55), 80V (CENU06/CENU56), 100V (CENU07/CENU57) |
|---|---|
| Power Dissipation (Ta=25°C) | 1.75 W |
| Operating and Storage Junction Temperature | -65 to +150 °C |
| Thermal Resistance (Theta JA) | 71.4 °C/W |
| Thermal Resistance (Theta JC) | 12.5 °C/W |
The transistors are housed in a JEDEC TO-202 case.
These transistors are designed for general purpose audio amplifier applications.
The maximum power dissipation at an ambient temperature of 25°C is 1.75 W.
