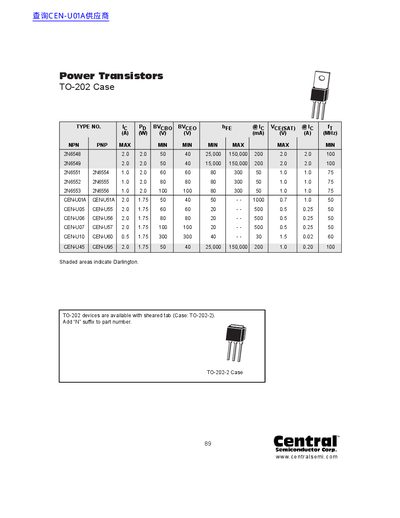

The document provides information about power transistors in TO-202 case, including NPN and PNP types. Some transistors have a Darlington configuration. The document lists the current, power dissipation, breakdown voltage, current gain, saturation voltage, and frequency response of these products.
The document lists various NPN and PNP power transistor part numbers available from Central Semiconductor. It details key parameters such as collector-emitter voltage (VCEO), base-collector voltage (VCBO), current gain (hFE), saturation current, and frequency for each model.
Shaded areas in the data table indicate Darlington configurations. The document also notes that TO-202 devices are available with a sheared tab case style (TO-202-2), which requires adding an 'N' suffix to the part number.
| Current Gain (hFE) Min/Max | 25,000 / 150,000 |
|---|
Shaded areas indicate Darlington configurations.
Add an 'N' suffix to the part number for TO-202-2 devices with a sheared tab.
