This document describes the features and applications of TOSHIBA Schottky Barrier Rectifier CMS11, including forward voltage, average forward current, repetitive peak reverse voltage, etc.

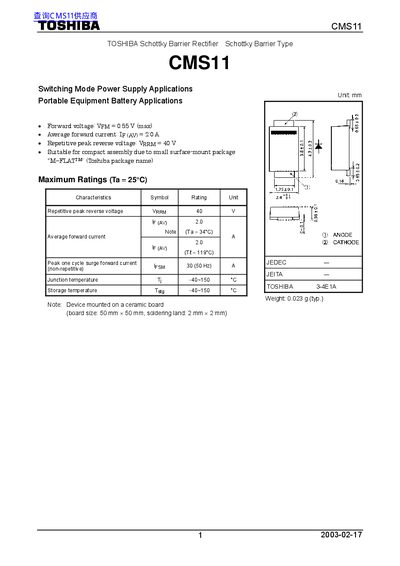

This document provides a datasheet for the Toshiba CMS11 Schottky barrier rectifier. It details maximum ratings such as a repetitive peak reverse voltage of 40 V and an average forward current of 2.0 A. The device is designed for compact assembly using the M-FLAT package.
| Repetitive peak reverse voltage | 40 V |
|---|---|
| Average forward current (Ta = 25°C) | 2.0 A |
| Junction temperature range | -40~150 °C |
| Forward voltage (If = 2.0A) | Max 0.55 V |
The device supports an average forward current of 2.0 A and a repetitive peak reverse voltage of 40 V.
The maximum forward voltage is 0.55 V when the average forward current is 2.0 A.
The device operates within a junction temperature range of -40 to 150 °C.
